Changement garnitures de freins arrière sur Tiguan modèle 2020 (1 Membre)

[diode]

Bonjour,

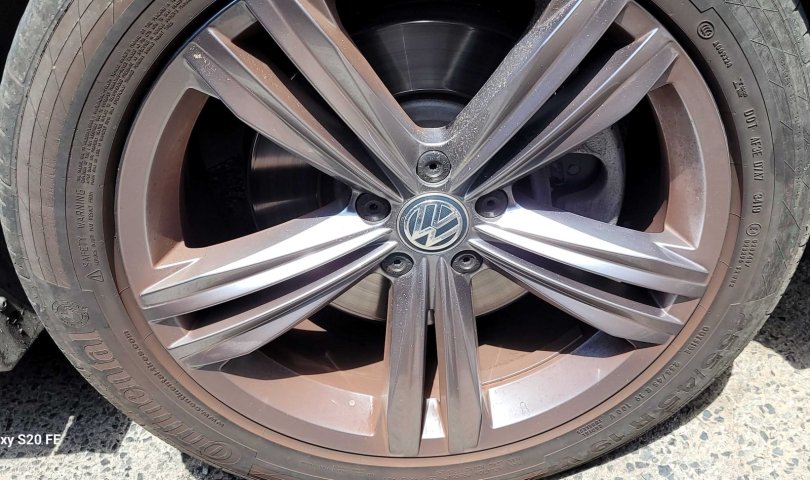

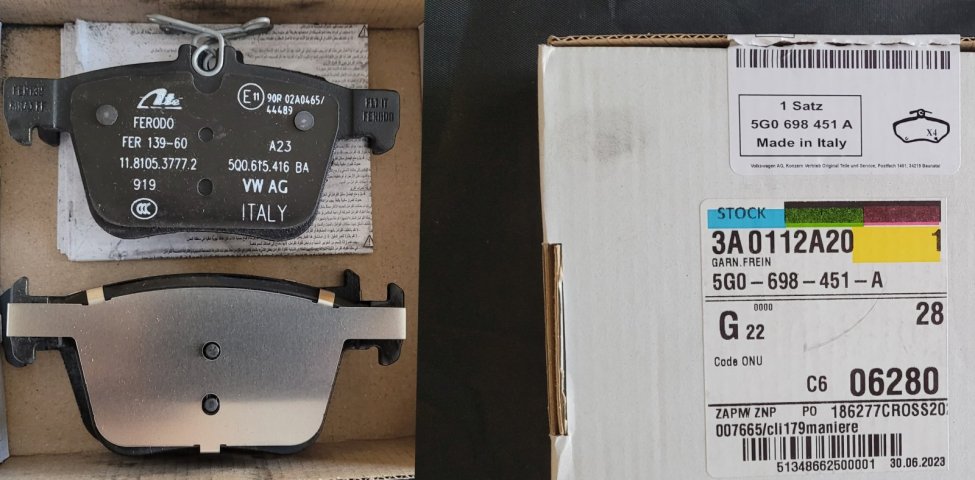

Je dois changer les garnitures de freins arrière sur mon Tiguan modèle 2020 avec frein de parking électrique.

Pour cela je dois utiliser VCDS pour mettre le frein de parking en position maintenance.

J’ai voulu utilisé un câble de première génération mais cela ne fonctionnait pas et j’ai dû commander un câble de dernière génération.

Il m’a indiqué également que la procédure que je voulais suivre n’était pas la bonne pour le Tiguan 2020 car sur ce modèle il fallait passer par le calculateur ABS.

En attendant et pour éviter de faire des âneries j’ai demandé des conseils à @BigBob et suis passé chez lui et il m’a réservé un accueil très chaleureux.

Il en a profité pour faire un autoscan de mon Tiguan.

Un grand merci à BigBob

Cliquer pour lire la suite ...



[BigBob]

Voici l'autoscan (à noter que j'ai pas fais de remise à zéro des défauts...) :

Wednesday,05,July,2023,15:22:27:61752
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 11 x64
VCDS Version: 23.3.1.0 (x64) HEX-V2 CB: 0.4631.4
Data version: 20230421 DS346.2

Les liens ne sont visibles que pour les membres confirmés.

VIN: WVGZZZ5NZLW838870 License Plate:
Mileage: 50501km-31379mi Repair Order:



--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


Chassis Type: 5N-VW37 (3Q0)
Scan: 01 02 03 05 06 08 09 10 13 14 15 17 19 22 29 36 39 3C 42 44
47 4B 52 5F 69 6C 6D 75 82 A5 CA D6 D7

VIN: WVGZZZ5NZLW838870 Mileage: 50501km-31379miles

01-Engine -- Status: OK 0000
02-Auto Trans -- Status: OK 0000
03-ABS Brakes -- Status: OK 0000
05-Acc/Start Auth. -- Status: OK 0000
06-Seat Mem. Pass -- Status: OK 0000
08-Auto HVAC -- Status: Malfunction 0010
09-Cent. Elect. -- Status: Malfunction 0010
10-Park/Steer Assist -- Status: OK 0000
13-Auto Dist. Reg -- Status: OK 0000
14-Susp. Elect. -- Status: OK 0000
15-Airbags -- Status: OK 0000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: OK 0000
22-AWD -- Status: OK 0000
29-Left Light -- Status: Malfunction 0010
36-Seat Mem. Drvr -- Status: Malfunction 0010
39-Right Light -- Status: Malfunction 0010
3C-Lane Change -- Status: OK 0000
42-Door Elect, Driver -- Status: Malfunction 0010
44-Steering Assist -- Status: OK 0000
47-Sound System -- Status: OK 0000
4B-Multifunc. Module -- Status: OK 0000
52-Door Elect, Pass. -- Status: Malfunction 0010
5F-Information Electr. -- Status: OK 0000
69-Trailer -- Status: Malfunction 0010
6C-Back-up Cam. -- Status: OK 0000
6D-Trunk Elect. -- Status: OK 0000
75-Telematics -- Status: OK 0000
82-Head Up Display -- Status: Malfunction 0010
A5-Frt Sens. Drv. Assist -- Status: OK 0000
CA-Sunroof -- Status: OK 0000
D6-Light Ctrl Left 2 -- Status: OK 0000
D7-Light Ctrl Right 2 -- Status: OK 0000
-------------------------------------------------------------------------------
Address 01: Engine (J623-CUAA) Labels:. 03N-906-026-CUA.clb
Part No SW: 03N 906 026 L HW: 03N 907 309
Component: R4 2.0l BTD H25 7429
Revision: A1H25--- CVN: 2AE3CE9437C5C2A218229D33D6C3ECFE
Coding: 01250032047605083000
Shop #: WSC 01357 011 00200
ASAM Dataset: EV_ECM20BTD01103N906026L 004002
ROD: EV_ECM20BTD01103N906026L_VW37.rod
VCID: 34311EF98EB47C2ADB3-8060
VINID: 9E65EAAAA15EA9C9C80C82070027134AD1

No fault code found.
Readiness: 0000 0000

-------------------------------------------------------------------------------
Address 02: Auto Trans (J743) Labels:. 0BH-927-711.clb
Part No SW: 0DL 300 012 T HW: 0GC 927 711 H
Component: GSG DQ500 H06 3004
Revision: 00H06V09 CVN: 90C178AB
Coding: 0014
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_TCMDQ500021 001001
ROD: EV_TCMDQ500021_001_VW36.rod
VCID: 3A2D30C1ACD08A5A01F-806E

No fault code found.

-------------------------------------------------------------------------------
Address 03: ABS Brakes (J104) Labels: 5Q0-907-379-IPB-V1.clb
Part No SW: 5Q0 614 517 ES HW: 5Q0 614 517 BP
Component: ESC H35 0190
Revision: 00000000 Serial number: 62879000001912
Coding: 0AEE6B9A50230B74477F070762C36950D60AD0E2E0469675386250F8D2AA4A0B00402F641A1B13111435351919323200
Shop #: WSC 01357 011 00200
ASAM Dataset: EV_Brake1UDSContiMK100IPB 038007
ROD: EV_Brake1UDSContiMK100IPB_038_VW37.rod
VCID: 06559431A8A83EBA357-8052

No fault code found.

-------------------------------------------------------------------------------
Address 05: Acc/Start Auth. (J518) Labels:| 5Q0-959-435.clb
Part No SW: 3Q0 959 435 N HW: 3Q0 959 435 N
Component: VWKESSYMQB 037 1307
Revision: 00037000 Serial number: 0531396063 Dataset Number: V03935330XS 0001
Coding: 132C2C0723
Shop #: WSC 131071 1023 2097151
ASAM Dataset: EV_KessyHellaMQBAB 004052
ROD: EV_KessyHellaMQBAB.rod
VCID: 45D7533DD52EF5A27CD-8010

Rear lid opener control module:
Subsystem 1 - Part No SW: 3G0 962 243 C HW: 3G0 962 243 C
Component: GEB.F.Heckoef H17 0906
Serial number: 14074460

No fault code found.

-------------------------------------------------------------------------------
Address 06: Seat Mem. Pass (J521) Labels:* None
Part No SW: 5Q0 959 760 E HW: 5Q0 959 760 E
Component: Sitzmemory H09 0026
Serial number: Y0007SHM36810
Coding: 0010000000000500818280808180000000008181000000F400
Shop #: WSC 01357 011 00200
ASAM Dataset: EV_SeatMemorPasseSide 002022
ROD: EV_SeatMemorPasseSide.rod
VCID: 3FDB41D5B7F2AF72361-806A

No fault code found.

-------------------------------------------------------------------------------
Address 08: Auto HVAC (E87) Labels:| 5G0-907-044.clb
Part No SW: 5NA 907 044 AA HW: 5NA 907 044 AA
Component: AC Automat H36 4803
Revision: 20K10000 Serial number: 00000B01519787
Coding: 0602011420211001110510000050142A
Shop #: WSC 01357 011 00200
ASAM Dataset: EV_ACClimaPrehVW37X 002027
ROD: EV_ACClimaPrehVW37X_002_VW37.rod
VCID: 7EA5FCD1F078667A7D7-802A

Air quality sensor:
Subsystem 1 - Part No SW: 5Q0 907 659 C HW: 5Q0 907 659 C
Component: G238 _AQS H30 0119
Serial number: 94215338

Rear air conditioning block 1:
Subsystem 2 - Part No SW: 3G0 907 049 D HW: 3G0 907 049 D
Component: E265KlimaHeck H02 0201
Serial number: 04031501850571
Coding: 000000

1 Fault Found:
263425 - Air Quality Sensor
B10AF 04 [008] - Internal System Fault
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 3
Fault Frequency: 97
Reset counter: 246
Mileage: 46182 km
Date: 2023.01.04
Time: 11:23:42

Outside temperature: 12.0 °C
Voltage terminal 30: 12.8 V
System run time-Engine running time: 253 s
System run time-Terminal 15 on: 253 s
Air quality status: Malfunction
System run time-Engine running time: 253 s
System run time-Terminal 15 on: 253 s


-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519) Labels:. 5Q0-937-08X-V2.clb
Part No SW: 5Q0 937 084 DG HW: 5Q0 937 084 CF
Component: BCM MQBAB M+ H40 0312
Serial number: 01001928501532 Dataset Number: V03935297ET 0001
Coding: 000000000000000000000000000000000000000000000000000000000000
Shop #: WSC 01357 011 00200
ASAM Dataset: EV_BCMMQB 020001
ROD: EV_BCMBOSCH_020_VW37.rod
VCID: 005982298A8C108A0FB-8054

Wiper motor control module:
Subsystem 1 - Part No SW: 5NB 955 119 A HW: 5NB 955 119 A Labels: 1KX-955-119.CLB
Component: 326 LL 240919 033 0372
Serial number: 00000001909190305595
Coding: 0E4DDD

Rain/Light Recognition Sensor:
Subsystem 2 - Part No SW: 5Q0 955 547 C HW: 5Q0 955 547 C Labels: 5Q0-955-547.CLB
Component: RLHS 051 0206
Serial number: SAY19M10D08H18M26S11
Coding: 0008DD

Steering Column Switch:
Subsystem 3 - Part No SW: 5Q1 953 507 M HW: 5Q1 953 549
Component: J527 SMLS MQB 004 0070
Serial number: 00000007101904221299

3 Faults Found:
197128 - Lock Module for Central Locking; Rear Left
B12DB 29 [008] - Signal Implausible
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 4
Fault Frequency: 1
Reset counter: 239
Mileage: 50284 km
Date: 2023.06.15
Time: 10:28:51

Terminal 15 status: On
Terminal 50 status: OFF
CAN-Bus_aktiv: On
Status Bremslichtschalter (HW): On
Status Bremslichtschalter (CAN): On
OFF: Not operated
Position lamps: Not operated
Automatic high beam assist: operated
Low beam: Not operated
Parking light left: Not operated
Parking light right: Not operated
last_wakeup: no cause for fault protection
Voltage: 12.9 V
Outside temperature: 24.0 °C

197132 - Lock Module for Central Locking; Rear Left
B12DB 01 [008] - Electrical Failure
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 4
Fault Frequency: 1
Reset counter: 238
Mileage: 50284 km
Date: 2023.06.14
Time: 16:56:50

Terminal 15 status: On
Terminal 50 status: OFF
CAN-Bus_aktiv: On
Status Bremslichtschalter (HW): OFF
Status Bremslichtschalter (CAN): OFF
OFF: Not operated
Position lamps: Not operated
Automatic high beam assist: operated
Low beam: Not operated
Parking light left: Not operated
Parking light right: Not operated
last_wakeup: no cause for fault protection
Voltage: 13.9 V
Outside temperature: 31.0 °C

204290 - Remote key 1
B1479 18 [008] - Current Too Low
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 4
Fault Frequency: 2
Reset counter: 241
Mileage: 46182 km
Date: 2023.01.04
Time: 11:29:29

Terminal 15 status: OFF
Terminal 50 status: OFF
CAN-Bus_aktiv: On
Status Bremslichtschalter (HW): OFF
Status Bremslichtschalter (CAN): OFF
OFF: operated
Position lamps: Not operated
Automatic high beam assist: Not operated
Low beam: Not operated
Parking light left: Not operated
Parking light right: Not operated
last_wakeup: no cause for fault protection
Voltage: 12.4 V
Outside temperature: 11.5 °C


-------------------------------------------------------------------------------
Address 10: Park/Steer Assist (J791) Labels:| 5Q0-919-298.clb
Part No SW: 3Q0 919 298 E HW: 3Q0 919 298
Component: PLA 3.0 12K H09 0046
Serial number: 002705187478031 Dataset Number: V03935289VN 0001
Coding: 0231667A51
Shop #: WSC 01357 011 00200
ASAM Dataset: EV_EPHBO2CVW3260000 010019
ROD: EV_EPHBO2CVW3260000_VW37.rod
VCID: 3FDB41D5B7F2AF72361-806A

No fault code found.

-------------------------------------------------------------------------------
Address 13: Auto Dist. Reg (J428) Labels:| 2Q0-907-572.clb
Part No SW: 2Q0 907 572 R HW: 2Q0 907 572 B
Component: ACCCONTIMQB H03 0372
Dataset Number: V03935304AX 0001
Coding: 320467DB5CFF8728749C810580408700000000000000000004
Shop #: WSC 01357 011 00200
ASAM Dataset: EV_ACCMRRCONTIVW376 003016
ROD: EV_ACCMRRCONTIVW376_003.rod
VCID: 43D34D25DB1ACB92529-8016

No fault code found.

-------------------------------------------------------------------------------
Address 14: Susp. Elect. (J250) Labels: 5Q0-907-376.clb
Part No SW: 5Q0 907 376 B HW: 5Q0 907 376 A
Component: DAEMPFUNGS-SG H17 0121
Serial number: 11091941350207 Dataset Number: V03935295HY 0001
ASAM Dataset: EV_DRCONTITEMIC 001019
ROD: EV_DRCONTITEMIC_VW37.rod
VCID: 38292AC992DC984AF7B-806C

No fault code found.

-------------------------------------------------------------------------------
Address 15: Airbags (J234) Labels:| 5Q0-959-655.clb
Part No SW: 5Q0 959 655 BT HW: 5Q0 959 655 BT
Component: AirbagVW21 008 0403
Serial number: 003FNR5SZSSK Dataset Number: V03935282LF 0001
Coding: 98CCC0C00C8000005C5400CF004800000065
Shop #: WSC 01357 011 00200
ASAM Dataset: EV_AirbaVW20SMEVW37X 002164
ROD: EV_AirbaVW20SMEVW37X_VW37.rod
VCID: 1373BD65EBFA9B12A29-8046

Left seat belt tensioner:
Subsystem 1 - Part No SW: 4M0 980 945 A HW: 4M0 980 945 A
Component: BeltPretRevFL 106 1040
Serial number: 5NB857705D0289T01183
Coding: 80000D

Right seat belt tensioner:
Subsystem 2 - Part No SW: 4M0 980 946 A HW: 4M0 980 946 A
Component: BeltPretRevFR 106 1040
Serial number: 5NB857706D0291T00382
Coding: 80000D

Crash sensor for side airbag: driver side:
Subsystem 3 - Part No SW: ----------- HW: 480 001 910 19
Component: SideSensor_Df 001 0887
Serial number: 35700000000878CC814W
Coding: 2D2D2D

Front Passenger's Side Airbag Crash Sensor:
Subsystem 4 - Part No SW: ----------- HW: 480 001 910 19
Component: SideSensor_Pf 001 0887
Serial number: 35800000000A9CBC814/
Coding: 2D2D2D

Rear Side Airbag Crash Sensor (on driver's side):
Subsystem 5 - Part No SW: ----------- HW: 480 401 610 19
Component: SideSensor_Dr 005 6149
Serial number: 351000198F2F5556D42D
Coding: 2D2D2D

Passenger side rear thorax airbag crash sensor:
Subsystem 6 - Part No SW: ----------- HW: 480 402 110 19
Component: SideSensor_Pr 005 6149
Serial number: 3520001BCF2F5552087C
Coding: 2D2D2D

Crash sensor for front airbag: driver side:
Subsystem 7 - Part No SW: ----------- HW: 480 401 510 19
Component: FrontSensor_D 005 6149
Serial number: 3550001AAF35B114C5EJ
Coding: 2D2D2D

Driver's side crash data pedestrian protection:
Subsystem 8 - Part No SW: ----------- HW: 480 401 710 19
Component: PedP_Sensor_D 005 6149
Serial number: 2280001C2F2F55527535
Coding: 2D2D2D

Passenger's side crash data pedestrian protection:
Subsystem 9 - Part No SW: ----------- HW: 480 401 710 19
Component: PedP_Sensor_P 005 6149
Serial number: 2290001C2F2F55515588
Coding: 2D2D2D

Center pedestrian protection crash sensor:
Subsystem 10 - Part No SW: ----------- HW: 480 401 710 19
Component: PedP_Sensor_C 005 6149
Serial number: 2300001C2F2F5551A5FC
Coding: 2D2D2D

Driver's side crash data pedestrian protection 2:
Subsystem 11 - Part No SW: ----------- HW: 480 001 710 19
Component: PedPSensor_D2 001 0887
Serial number: I0M00000000C3210914T
Coding: 2D2D2D

Passenger's side crash data pedestrian protection 2:
Subsystem 12 - Part No SW: ----------- HW: 480 001 710 19
Component: PedPSensor_P2 001 0887
Serial number: I0N00000000D3210914V
Coding: 2D2D2D

No fault code found.

-------------------------------------------------------------------------------
Address 17: Instruments (J285) Labels:| 5G0-920-XXX-17.clb-SRI3
Part No SW: 3G0 920 790 E HW: 3G0 920 790 E
Component: KOMBI 503 4193
Coding: 04A420087F8C00080188630B1001000880000C06
Shop #: WSC 01357 011 00200
ASAM Dataset: EV_DashBoardVDDMQBA0 001042
ROD: EV_DashBoardVDDMQBA0_001_VW37.rod
VCID: 2A0D00815C703ADA71F-807E

No fault code found.

-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533) Labels:| 3Q0-907-530-V1.clb
Part No SW: 3Q0 907 530 AC HW: 3Q0 907 530 C
Component: GW MQB High 521 5388
Serial number: 12101911602168 Dataset Number: V03935300FR 0001
Coding: 0B0500345F017300FB17225E9A0F00010001070000000000000000000000
Shop #: WSC 01357 011 00200
GVL: 01C63C0808000400C0FC80008002CC0010000000000200000000000000000000
ASAM Dataset: EV_GatewNF 013026
ROD: EV_GatewNF_VW37.rod
VCID: 70B9D2E9BA2C000AFFB-8024

Generator:
Component: 4-00-03-00-04

Multifunction steering wheel control module:
Subsystem 2 - Part No SW: 5NA 959 442 B HW: 5NA 959 442 B Labels: 3C8-959-537.CLB
Component: E221__MFL-TAT H06 0025
Serial number: 2671921241301362FH2B
Coding: 2D0000

Battery Monitoring Control Module:
Subsystem 3 - Part No SW: 5QA 915 181 E HW: 5QA 915 181 E
Component: J367-BDMHella H10 9070
Serial number: 3488482305

Inverter for electrical outlet:
Subsystem 4 - Part No SW: 5Q0 907 155 F HW: 5Q0 907 155 F
Component: U13DCAC H27 0810
Serial number: 6065116

No fault code found.

-------------------------------------------------------------------------------
Address 22: AWD (J492) Labels:* 0CQ-907-554.clb
Part No SW: 0CQ 907 554 J HW: 0CQ 525 130
Component: Haldex4Motion H55 7084
Serial number: HA1-00013.08.19 Dataset Number: v1260x015G0 0000
Coding: 0101
Shop #: WSC 01357 011 00200
ASAM Dataset: EV_AllWheelContrHA1VW37X 004013
ROD: EV_AllWheelContrHA1VW37X_004.rod
VCID: 4CC16619F64404EAA33-8018

No fault code found.

-------------------------------------------------------------------------------
Address 29: Left Light (J1018) Labels: 8V0-907-399.clb
Part No SW: 8V0 907 399 B HW: 8V0 907 399 B
Component: LCM_MLBevoH08 0014
ASAM Dataset: EV_LCMLeftHELLAAU736 001012
ROD: EV_LCMLeftHELLAAU736_VW37.rod
VCID: 45D7533DD52EF5A27CD-8010

1 Fault Found:
0033 - Supply voltage
U1011 00 [008] - Voltage too Low
[Supply voltage - lower limit exceeded]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 5
Fault Frequency: 1
Reset counter: 243
Mileage: 50417 km
Date: 2023.06.30
Time: 15:34:55


-------------------------------------------------------------------------------
Address 36: Seat Mem. Drvr (J810) Labels:* None
Part No SW: 5Q0 959 760 E HW: 5Q0 959 760 E
Component: Sitzmemory H09 0026
Serial number: Y0007SHL36334
Coding: 001000020000050001C280808180000000008181000000F400
Shop #: WSC 01357 011 00200
ASAM Dataset: EV_SeatMemorDriveSide 002022
ROD: EV_SeatMemorDriveSide.rod
VCID: 3FDB41D5B7F2AF72361-806A

1 Fault Found:
13893632 - Function Restricted due to Insufficient Voltage
U1400 00 [008] - -
[Funktionseinschränkung durch Unterspannung --> funktionelle Einschränkungen aufgrund vorübergehender Unterspannung in der Versorgung.]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 6
Fault Frequency: 7
Reset counter: 235
Mileage: 46289 km
Date: 2023.01.22
Time: 12:19:11


-------------------------------------------------------------------------------
Address 39: Right Light (J1023) Labels: 8V0-907-399.clb
Part No SW: 8V0 907 399 B HW: 8V0 907 399 B
Component: LCM_MLBevoH08 0014
ASAM Dataset: EV_LCMRightHELLAAU736 001012
ROD: EV_LCMLeftHELLAAU736_VW37.rod
VCID: 45D7533DD52EF5A27CD-8010

1 Fault Found:
0033 - Supply voltage
U1011 00 [008] - Voltage too Low
[Supply voltage - lower limit exceeded]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 5
Fault Frequency: 2
Reset counter: 243
Mileage: 48671 km
Date: 2023.05.05
Time: 11:22:01


-------------------------------------------------------------------------------
Address 3C: Lane Change (J1086) Labels: None
Part No SW: 2Q0 907 686 B HW: 2Q0 907 686 B
Component: HRE3_Kl15_Mst H06 0149
Serial number: 00000527497268 Dataset Number: V03935308HF 0001
Coding: 62954640
ASAM Dataset: EV_HREntryHellaGen3Kl15 002001
ROD: EV_HREntryHellaGen3Kl15_002_VW27.rod
VCID: 392F2FCDA9D68142085-806C

Subsystem 1 - Part No SW: 2Q0 907 685 B HW: 2Q0 907 685 B
Component: HRE3_Kl15_Slv H06 0149
Serial number: 00000527581342

No ASAM data for: "EV_HREntryHellaGen3Kl15" (VW37)
No fault code found.

-------------------------------------------------------------------------------
Address 42: Door Elect, Driver (J386) Labels:| 5QX-959-X93-42.clb
Part No SW: 5Q0 959 593 K HW: 5Q0 959 593 F
Component: TSG FS002 0325
Serial number: YE007SIF01802 Dataset Number: V03935306YK 0001
Coding: 003F1B20D200048000001000
Shop #: WSC 01357 011 00200
ASAM Dataset: EV_DCU2DriveSideMAXHKLO 001018
ROD: EV_DCU2DriveSideMAXHKLO_VW37.rod
VCID: 49CF5F0DF93611C2985-801C

Rear Driver Side Door Control Module:
Subsystem 1 - Part No SW: 5Q0 959 407 A HW: 5Q0 959 163
Component: FOND_FHSG_DRV 007 0010
Serial number: 00000000000034846913
Coding: 210000

2 Faults Found:
1114113 - Local Data Bus
U10BA 00 [008] - No Communication
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 4
Fault Frequency: 1
Reset counter: 238
Mileage: 50284 km
Date: 2023.06.14
Time: 16:54:38

1114127 - Window Regulator Motor; Front Driver Side
B1321 02 [008] - Signal Failure
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 4
Fault Frequency: 1
Reset counter: 238
Mileage: 50284 km
Date: 2023.06.14
Time: 16:54:37


-------------------------------------------------------------------------------
Address 44: Steering Assist (J500) Labels:| 5Q0-909-144.clb
Part No SW: 5QF 909 144 B HW: 5QF 909 144 A
Component: EPS_MQB_ZFLS 507 5582
Dataset Number: V03935313WA 0001
Coding: 931F0000
Shop #: WSC 01357 011 00200
ASAM Dataset: EV_SteerAssisMQB 015157
ROD: EV_SteerAssisMQB_015.rod
VCID: 49CF5F0DF93611C2985-801C

No fault code found.

-------------------------------------------------------------------------------
Address 47: Sound System (J525) Labels:| 3Q0-035-466.clb
Part No SW: 3Q0 035 465 HW: 3Q0 035 465
Component: MIB2_amp_P_VW H65 0450
Revision: 00000001 Serial number: VWZ8Z1KJD02YXFK Dataset Number: V03935240AN 0001
Coding: 1223060001A00A2AAA0000000000
Shop #: WSC 01357 011 00200
ASAM Dataset: EV_AMPMst16C3Gen2ALPI 001016
ROD: EV_AMPMst16C3Gen2ALPI_VW37.rod
VCID: 6B83C585930AE3D2CA9-803E

1 Fault Found:
0532 - Rear Left Treble Speaker
B1066 13 [008] - Open Circuit
[Tieftonlautsprecher Kanal 5: Unterbrechung (DC-Diagnose)]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 6
Fault Frequency: 4
Reset counter: 246
Date: 2000.00.00
Time: 00:00:00

Voltage terminal 30: 12.1 V


-------------------------------------------------------------------------------
Address 4B: Multifunc. Module (J745) Labels:. 3Q0-907-338-V2.clb
Part No SW: 3Q0 907 338 E HW: 3Q0 907 338 E
Component: FCM MQB Low 003 0367
Serial number: 10101910521551 Dataset Number: V03935302YE 0001
Coding: 00000005090008D207104F010A0000000000000000000000000000000000
Shop #: WSC 01357 011 00200
ASAM Dataset: EV_MultiModulContiVW48X 003003
ROD: EV_MultiModulContiVW48X_003.rod
VCID: 372B29F59FC29732FE1-8062

No ASAM data for: "EV_MultiModulContiVW48X" (VW37)
No fault code found.

-------------------------------------------------------------------------------
Address 52: Door Elect, Pass. (J387) Labels:* Redir Fail!
Part No SW: 5Q0 959 592 K HW: 5Q0 959 592 F
Component: TSG BFS002 0325
Serial number: YE007SII16563 Dataset Number: V03935306YM 0001
Coding: 003F1120DE00048000001000
Shop #: WSC 01357 011 00200
ASAM Dataset: EV_DCU2PasseSideMAXHKLO 001018
ROD: EV_DCU2PasseSideMAXHKLO_VW37.rod
VCID: 48C95A09E23CE8CA87B-801C

Rear Passenger Door Control Module:
Subsystem 1 - Part No SW: 5Q0 959 408 A HW: 5Q0 959 164
Component: FOND_FHSG_PSG 007 0010
Serial number: 00000000000035071462
Coding: 290000

1 Fault Found:
196644 - Local Data Bus
U10BA 00 [008] - No Communication
[Door electronics driver side rear Function limitation due to missing message]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 6
Fault Frequency: 1
Reset counter: 238
Mileage: 50284 km
Date: 2023.06.14
Time: 16:54:38


-------------------------------------------------------------------------------
Address 5F: Information Electr. (J794) Labels:| 5G0-035-MIB-HGH2.clb
Part No SW: 5NA 035 020 E HW: 5NA 035 020
Component: MU-H-ND-EU H55 1367
Serial number: A845J0KP004331 Dataset Number: V03935311FY 0001
Coding: 02730601000000005111010200880A001F0100E4012004009E
Shop #: WSC 01357 011 00200
ASAM Dataset: EV_MUHig4CGen2HBAS 001001
ROD: EV_MUHig4CGen2HBAS_VW37.rod
VCID: 33331DE58BBA7B12C29-8066

Display and control head 1 for information electronics:
Subsystem 1 - Part No SW: 5G6 919 606 HW: 5G6 919 606
Component: ABT_High-2 H61 9214
Serial number: VWZ6ZJW2903650

Data carrier:
Subsystem 2 - Part No SW: V03 959 809 PC HW: -----------
Component: ECE 2023 --- 0310
Serial number: --------------------

Compact disc data bank:
Subsystem 3 - Part No SW: V03 959 800 EG HW: -----------
Component: Gracenote2 --- 1017
Serial number: --------------------

No fault code found.

-------------------------------------------------------------------------------
Address 69: Trailer (J345) Labels:| 5Q0-907-383.clb
Part No SW: 5Q0 907 383 N HW: 5Q0 907 383 N
Component: Anhaenger H27 0264
Revision: 8A001003 Serial number: 0530588311 Dataset Number: V03935259HM 0001
Coding: 0100000202000000
Shop #: WSC 01357 011 00200
ASAM Dataset: EV_TrailFunctGener2Hella 001008
ROD: EV_TrailFunctGener2Hella_VW26.rod
VCID: 42DD4821C400C29A59F-8016

1 Fault Found:
656138 - Bulb for Right Tail Light on Trailer
C10F4 15 [008] - Open or Short to Plus
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 3
Fault Frequency: 1
Reset counter: 229
Mileage: 49864 km
Date: 2023.05.19
Time: 11:15:59


-------------------------------------------------------------------------------
Address 6C: Back-up Cam. (J928) Labels:* None
Part No SW: 5Q0 907 556 C HW: 5Q0 907 556
Component: Areaview 2 H13 0608
Serial number: C854707JG064989 Dataset Number: V03935263ZZ 0001
Coding: 01230600A30F200000204014
Shop #: WSC 01357 011 00200
ASAM Dataset: EV_CamSysRVAV2ARCE2MQBAB 006017
ROD: EV_CamSysRVAV2ARCE2MQBAB.rod
VCID: 392F2FCDA9D68142085-806C

No fault code found.

-------------------------------------------------------------------------------
Address 6D: Trunk Elect. (J605) Labels:| 5Q0-959-107.clb
Part No SW: 5Q0 959 107 S HW: 5Q0 959 107 J
Component: HDSG-Modul H13 0271
Revision: -------- Serial number: A2-C737-6291-8 Dataset Number: V03935292SD 0001
Coding: 0A88
Shop #: WSC 01357 011 00200
ASAM Dataset: EV_DeckLidCONTIAU736 001017
ROD: EV_DeckLidCONTIAU736_VW37.rod
VCID: 48C95A09E23CE8CA87B-801C

No fault code found.

-------------------------------------------------------------------------------
Address 75: Telematics (J949) Labels:| 5QE-035-285.clb
Part No SW: 5NA 035 284 C HW: 5NA 035 284 C
Component: OCULowMQBLGE H19 0825
Revision: -------- Dataset Number: V03935300NT 0001
Coding: 02230601EA42380D3F1CBE020045400382E608
Shop #: WSC 01357 011 00200
ASAM Dataset: EV_OCULowMQBLGE 004049
ROD: EV_OCULowMQBLGE_004_VW32.rod
VCID: 3D273BDDBDFEBD6224D-8068

No fault code found.

-------------------------------------------------------------------------------
Address 82: Head Up Display (J898) Labels:* None
Part No SW: 5NA 919 608 B HW: 5NA 919 608 B
Component: HeadupDisplay 023 0302
Coding: 574060
Shop #: WSC 01357 011 00200
ASAM Dataset: EV_HeadUpDisplContiVW481 001015
ROD: EV_HeadUpDisplContiVW481.rod
VCID: 47CB5935EF22E7B28E1-8012

1 Fault Found:
13894400 - Function limitation due to excessive temperature
B1050 00 [008] - -
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 6
Fault Frequency: 2
Reset counter: 241
Mileage: 50354 km
Date: 2023.06.23
Time: 15:39:07


-------------------------------------------------------------------------------
Address A5: Frt Sens. Drv. Assist (R242) Labels:| 3Q0-980-65X-A5.clb
Part No SW: 3Q0 980 654 L HW: 3Q0 980 654 A
Component: MQB_B_MFK H12 0610
Serial number: 30091912K15078 Dataset Number: V03935313CD 0001
Coding: 000307060000040100222347C150A90098000E20004000
Shop #: WSC 01357 011 00200
ASAM Dataset: EV_MFKBoschMQBB 002041
ROD: EV_MFKBoschMQBB_002.rod
VCID: 40D94229CA0CD08A4FB-8014

No fault code found.

-------------------------------------------------------------------------------
Address CA: Sunroof (J245) Labels:| 4M0-907-594.clb
Part No SW: 4K0 907 594 AC HW: 4K0 907 594
Component: SAD_STG_1 006 0002
Dataset Number: V03935292ET 0001
Coding: 608040732602
Shop #: WSC 01357 011 00200
ASAM Dataset: EV_SunRoofCONTIAU736 009011
ROD: EV_SunRoofCONTIAU736_009_VW37.rod
VCID: 75B7E3FDC54E25222CD-8020

No fault code found.

-------------------------------------------------------------------------------
Address D6: Light Ctrl Left 2 (A31) Labels: 7PP-941-572.clb
Part No SW: 7P5 941 572 AG HW: 7P5 941 572 A
Component: LED1L H07 0008
ASAM Dataset: EV_LEDMinMaxL_KEBODAVW481 001003
ROD: EV_LEDMinMaxL_KEBODAVW481.rod
VCID: 005982298A8C108A0FB-8054

No fault code found.

-------------------------------------------------------------------------------
Address D7: Light Ctrl Right 2 (A27) Labels: 7PP-941-572.clb
Part No SW: 7P5 941 572 AG HW: 7P5 941 572 A
Component: LED1R H07 0008
ASAM Dataset: EV_LEDMinMaxR_KEBODAVW481 001003
ROD: EV_LEDMinMaxL_KEBODAVW481.rod
VCID: 005982298A8C108A0FB-8054

No fault code found.

End----------(Elapsed Time: 02:19, VBatt start/end: 12.1V/12.1V)-----------

Click to shrink...



[BigBob]

Publicité

Les membres ne voient pas cette publicité.

La procédure à suivre : «

Les liens ne sont visibles que pour les membres confirmés.

».

Du coup je te confirme que ton châssis « Chassis Type: 5N-VW37 (3Q0) » est en plateforme « MQB »...

Dixit « UWE » : «

Les liens ne sont visibles que pour les membres confirmés.

».



[diode]

Bonjour,

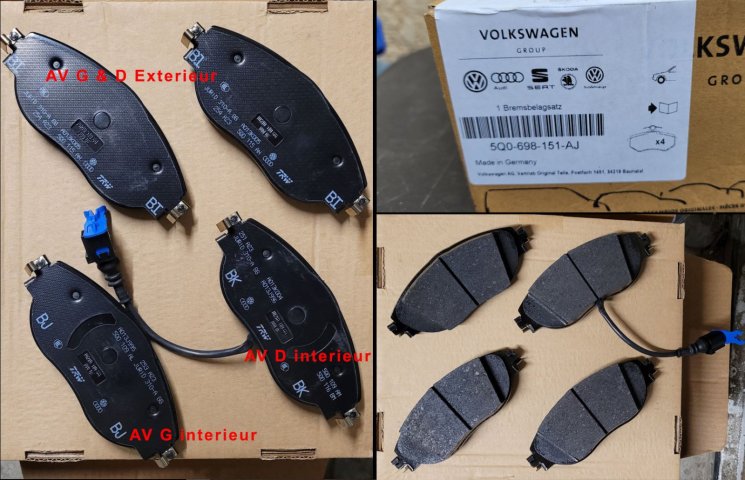

Pour information voici les plaquettes vendues par VW pour ce modèle:
Avant:

Vous devez être enregistré pour pouvoir accèder à cette image

Les plaquettes sérigraphiées "BI" se montent coté extérieur
La plaquette sérigraphiée "BK" se monte à droite à l'intérieur (coté piston)
La plaquette sérigraphiée "BJ" se monte à gauche à l'intérieur (coté piston)


Arrière:



[BigBob]

Alors, elles sont changées ces garnitures ?



[diode]

Alors, elles sont changées ces garnitures ?

Click to shrink...

Bonjour,
Oui elles sont changées.
Et après un trajet de 900 km je n'étais pas tranquille car il y avait beaucoup de résidus de plaquettes sur les jantes. A tel point que je me suis demandé si je n'avais pas mal mis une plaquette.

Vous devez être enregistré pour pouvoir accèder à cette image



[Steph97430]

Bonjour,
Tu as le temps de vérifié ton montage?
Ah 900 km ta fait facilement ton rodage.



[diode]

Bonjour,
Tu as le temps de vérifié ton montage?
Ah 900 km ta fait facilement ton rodage.

Click to shrink...

Bonjour,
J'ai effectivement vérifié le montage et tout est en ordre.
Ca doit être un truc de VW pour vérifier qu'elles sont bien rodées: Plein de particules de plaquette sur la jante.
Ils sont forts ces Allemands

Publicité

Les membres ne voient pas cette publicité.
